Jun 24th 2008

Mikuni 36mm Carburetor

The carburetor as seen from the recipient's 3D software. It's nice to see your model on someone else's computer.

Rendered version & Wireframe version, side by side

Fifth session of modeling: Addming additional vents and detailing hardware

Fifth session of modeling: Addming additional vents and detailing hardware

Fourth session of modeling: Blending fittings on the "right" side

Third session of modeling: Blending the fittings on the "left" side.

Third session of modeling: Blending the fittings on the "left" side.

Second session of modeling: Adding extra protrusions, not yet blended

Second session of modeling: Blending the shapes together

First session of modeling: Just "roughing out" the shape

Stock photograph of the real carburetor

Reference material being used for the build

This carburetor model will be fed into a rapid-prototyping machine for use in a scale model. The carburetor will be used in a 1:5 replica of a '74 TZ350 that originally raced in Australia. Some parts will be metal, some hand fabricated alloy, and other bits (like this one) will be created by rapid-prototyping.

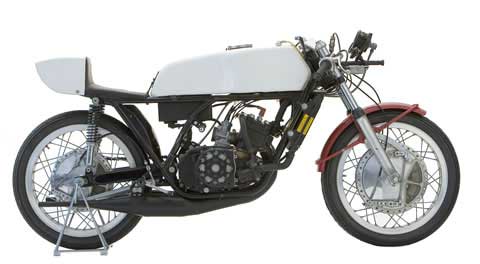

A Yamaha TZ-350 Motorcycle - (The bike to be miniaturized)

Current Status

The part has been sent to the prototyping house and I've gotten an email with the carb open in 3D software on that side. It's a really nice thing to see your model open on someone else's system. Providing there are no geometry or modeling issues, we may see this model move from the digital realm into the physical one!
